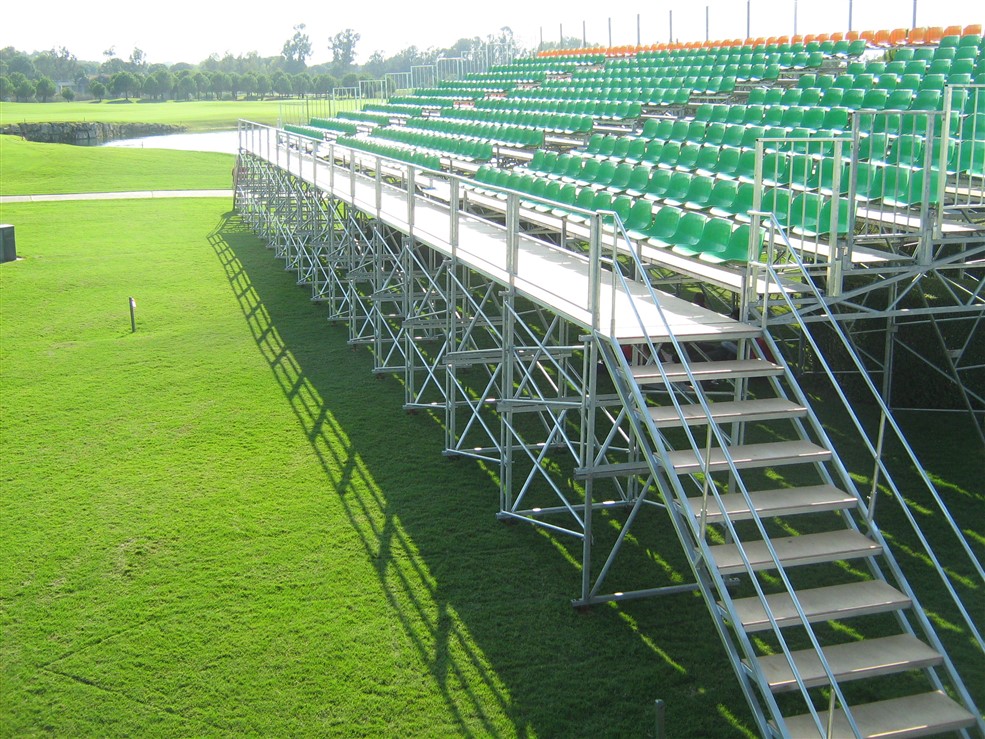

Our system is portable and there's absolutely no connection made with welding. It can be disassembled and assembled in another place if wanted.
DISMANTLED SYSTEM FEATURES:
Our system has a portable feature and absolutely no connection is made with welding. It can be disassembled and assembled in another place if wanted.
There are no welded joints during assembly.
We make the installation with interlocking method. Disassembled and reusable tribunes have been designed to be very fast to install and detachable, and no wielding required.
During the installation of the system, no consumables are used such as welding, rivets, nuts or bolts etc. The whole system is connected by interlocking method.
Bolt nuts and washers will be used only in the system assembly of the front, side and rear railings and the staircase exit railings.

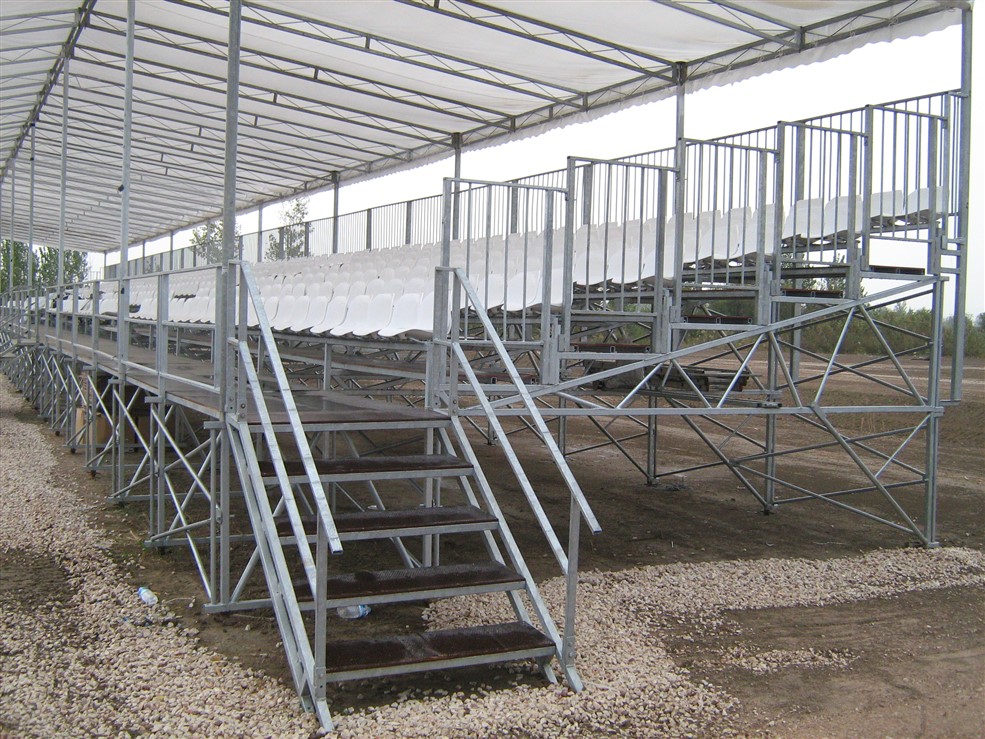

In the system, we use carrier leaf springs, diagonal connecting rods, connection apparatus and riser elements.
The vertical pendulum feet are used for the elevation of the portable tribune system in the rear.
Materials such as concrete mosaic, heavy steel, which weighs down the system, are definitely not used.
The materials to be used are light and portable due to the disassembling nature of the system.
The frame of the system is made of hot roll-formed square and rectangular profiles and welded industrial pipes. These materials used as structural steel are St.37 and DIN 2394 (EN 10305-3: 2004) and DIN 2395 (EN 10219-2-1997) standards compatible.
The manufacture of the parts will be made with gas welding and CO2 is used as protective gas. The method of gas welding is according to TS 5618 EN 440 -DIN 8559 - AWS 5, 18, BS EN 288 part 3 1988 and TS 5618 EN 440 standards.
FEATURE: CAN BE INSTALLED FOR ANY FLOOR:
There is no need for any special floor covering during the installation of the system.
It can be installed on any leveled floor.
It can be easily adapted in the field with different slope soil structure.
In addition, the adjustment screws used to prevent the floor faults also prevent the legs of the tribune from sinking on unstable ground.

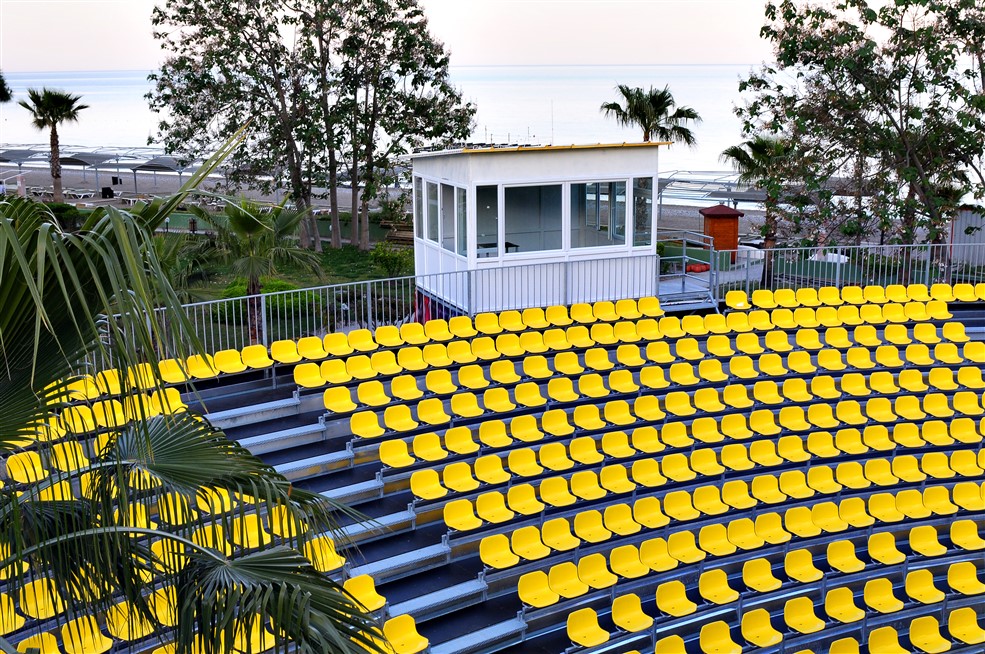

SEATING SECTION AND PVC SEATS
The height of the seating section, the height and width of the risers vary according to the project.
Seat height is 45 cm.
Different alternatives depending on the project are offered in the seats to be used in the system.
Wood to be used as a platform flooring material is 12mm-thick, waterproof and resistant to high load, moisture, dirt, acid, damp, sweet and salt water. (Different alternatives can be offered as per our customers' request.)
The adhesive product to be used is resistant to water and all weather conditions. Adhesive is selected according to EN 3142. The approximate density of the wood material to be used shall be gross 710 kg/m3 and the products that comply with ISO-9001 and ISO-14001 are selected.
The width and height of the walkways vary depending on the project.
The walkway substructure consists of a minimum of 3 box profiles.
The walkways are interlocked to the system and the welding method is not used.
The sections of the tribune that are higher than the ground will be secured by the railing system.
LOAD-BEARING SYSTEM COATING:
All steel construction system is covered with hot dip galvanizing method. The steel construction that is coated with this method increases the protection against corrosion to a minimum of 15 years.
Hot dip galvanizing shall comply with TS 914 EN ISO 1461 (E), DIN EN 1461 Standards.
SAFETY OF THE SYSTEM AFTER INSTALLATION:
When the steel construction parts of the removable tribune are assembled to each other, the system is continued to be mounted in one direction and the whole system is repeated to the end of the tribune so that no part can be removed. It eliminates the possibility of theft and sabotage.
This locking system makes the turbine's load, static and dynamic loads safe and durable to ensure the safety of the spectators.
Tribune manufacturing is subject to an significant static and dynamic load as it will carry many people on it at the same time. Design, manufacturing and installation must be very careful.
The static calculations of the projects must be approved by a technical university with a competency of static reports.
It should be taken into consideration that the system should have been used in an international organization, been tested for the safety, and be an ergonomic, functional, long-lasting and economical solution according to tests on-site.
It is important that the contractor firm, which will carry out the production and assembly of the project, is a specialized manufacturer. The contractor firm must have manufacturer certificates for portable stand, telescopic stand and a mobile tribune from the chamber of industry and commerce.
The contractor firm, which will carry out the production and assembly of the project, must have a capacity report and an industrial registry certificate issued by the chamber of industry and commerce in the name of the contractor.
The contractor must have an equivalent work certificate. (From government institutions)The contractor must have ISO and CE certificate.
